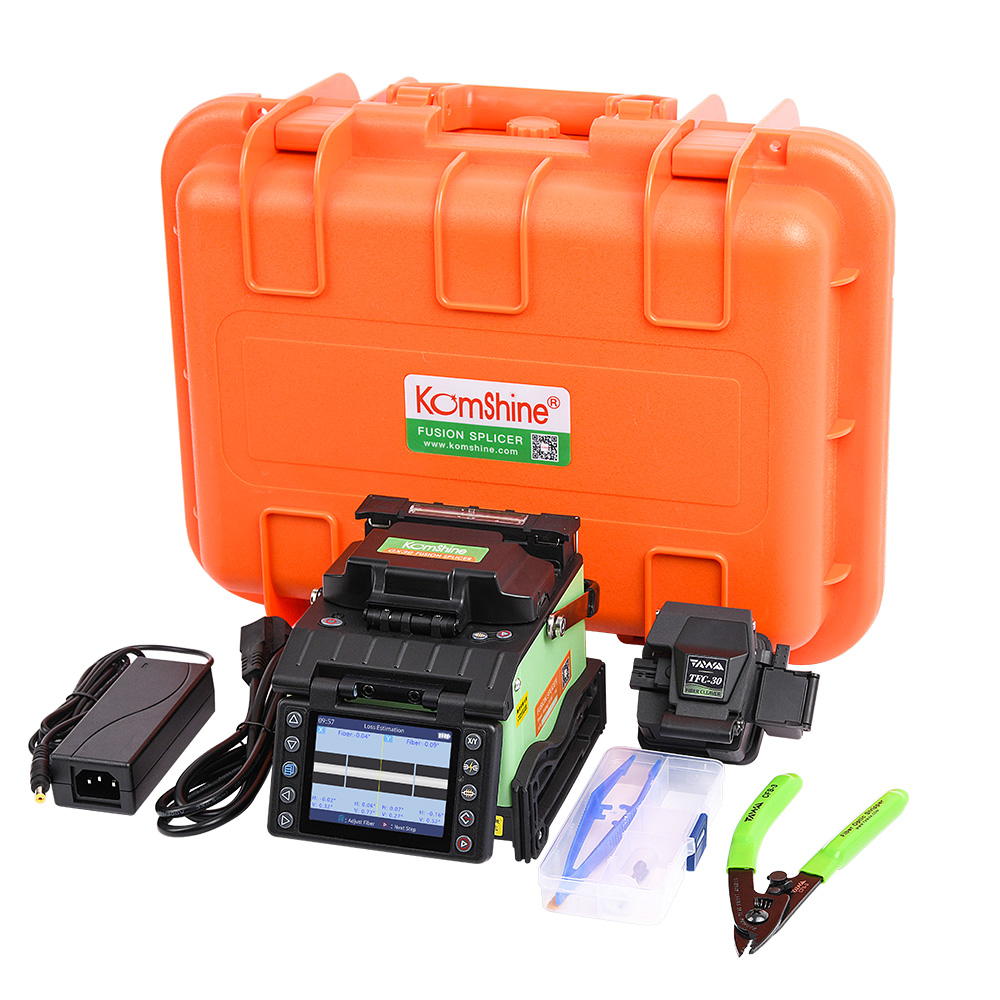

Máquina de emenda de fusão FTTH GX39

Emenda rápida 9S, aquecimento rápido 20S
Vida útil do eletrodo: 4000 vezes
Perda média abaixo de 0.01dB
Bateria de 5200mAh com capacidade para 350 emendas
1000 grupos de emendas salvas e 100 imagens de emenda

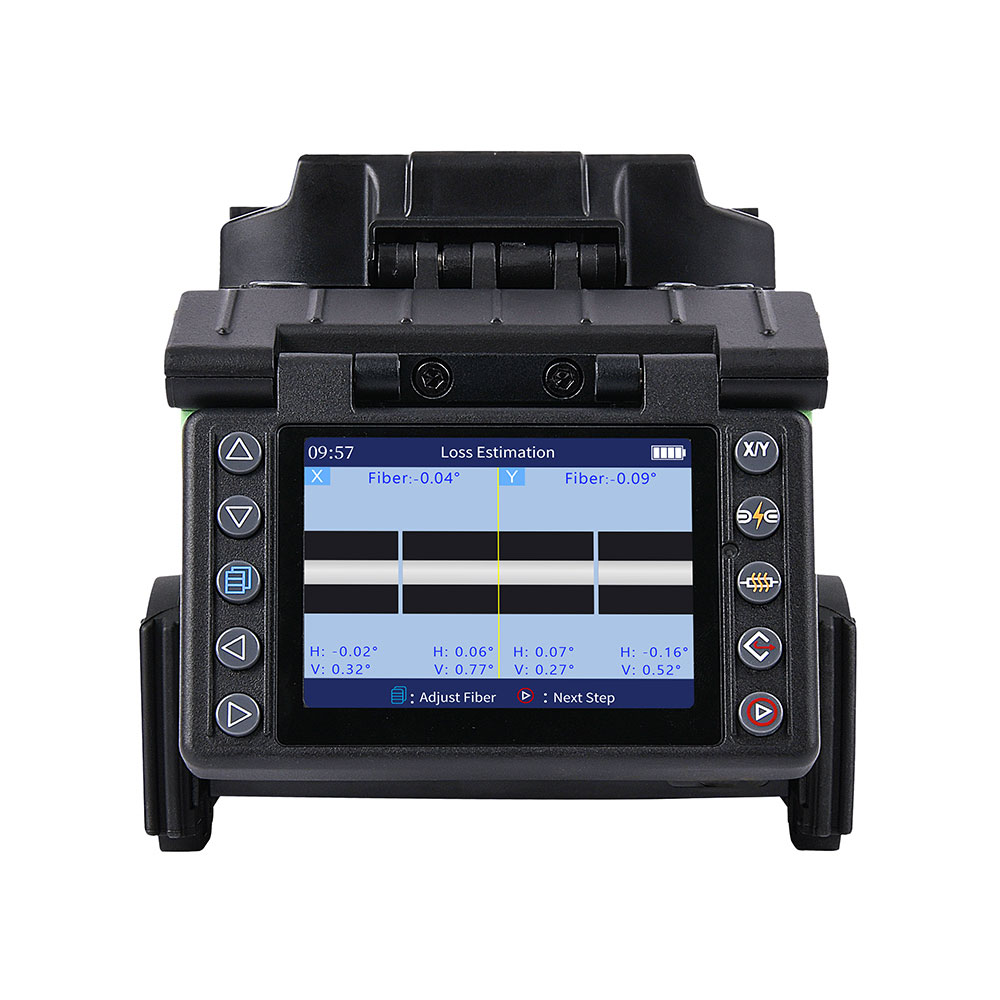

Display LCD HD 800x480, 3.5 polegadas
300x (eixo X ou eixo Y), 150x (eixo X ou eixo Y)
Combinado com o processamento em tempo real para emendas de baixa perda
Porta USB; Conveniente para download de dados e atualização de software
Compacto, leve e rápido

Informações sobre o produto

Type GX39
Fiber Type SM(G652 &G657) 、 MM(G651)、DS (G653)、NZDS(G655)
Actual Splicing Loss 0.02dB（SM）   0.01dB（MM） 0.04dB(DS/NZDS)
Control Technique Real-time control and correction of welding arc; Self-adaptation within working environment; Self-adaptive electrode oxidation
Return Loss Better than 60dB
Tube Typical Splicing Time 9S(Standard SM)
Tube Typical Heating Time 20S(Heating time can be set.  Heating temperature can be adjusted)
Fiber Aligning Method Meticulous ; Core ; Clad ; Manual
Fiber Diameter Clad Diameter is 80 ~ 150μm; Coating100 ~ 1000μm
Cutting Length Coating layer＜250μm: 8 ~ 16 mm; Coating 250 ~ 1000μm: 16mm
Heat-shrinkable Sleeve 60 mm、40 mm and a series of thermal sleeves
Tension Test Standard 2N(can choose)
Fiber Clamp Suitable for Bare fiber, Tail fiber, Jumper wire, Leather wire
Fiber Image Magnification 300X(X-axis or Y-axis); 150X(X-axis and Y-axis)
Graphical Display 3.5Inch TFT Color LCD,can be flipped, convenient bidirectional operation
External Port USB 2.0 interface, convenient for data download, using U disk upgrade software
Splicing Program 100(User Mode) ; 53(Factory Mode)
Heating Program 40 (User Mode) ; 11 (Factory Mode)
Fusion Splicing Record Saved 10000 groups splicing results.100 sets of latest Images

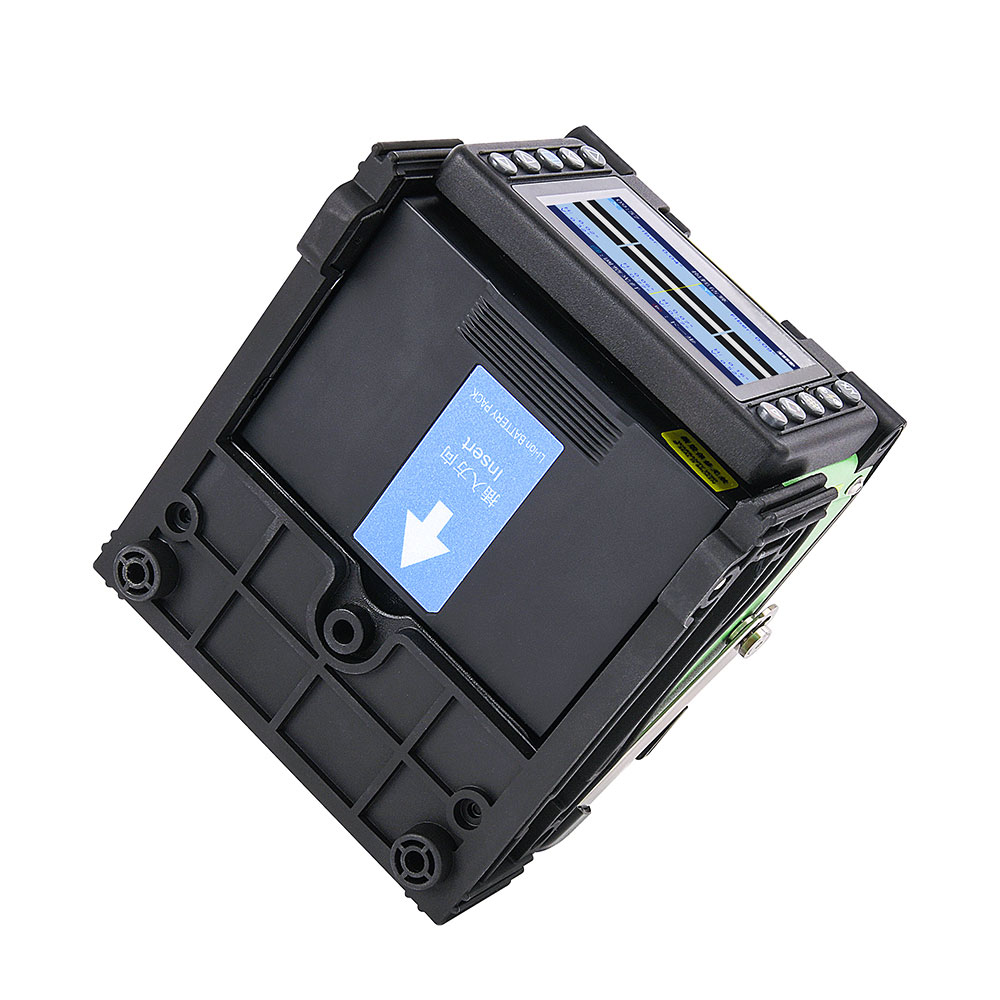

Internal battery Lithium battery 12.5V power supply (10.8V storage), independent charger, charging time ≤3.5,heating time no less than 350 times(Typical)
Power Supply Power supply connector, external adapter (Import AC:AC100~240V,50/60Hz, 0~1.5A, Export DC:DC13.5v/4.8A)
Working environment Temp:-10~50℃；Hum:0~95%RH
Elevation:0~5000M; Resist the maximum wind speed : ≤ 15m/s
High-brightness lights Convenient for placing the fiber at night
Size 122mm(Length)x148mm(Width)x130mm(Height)
Weight 1.44kg (Without Battery).1.77kg (With Battery)
